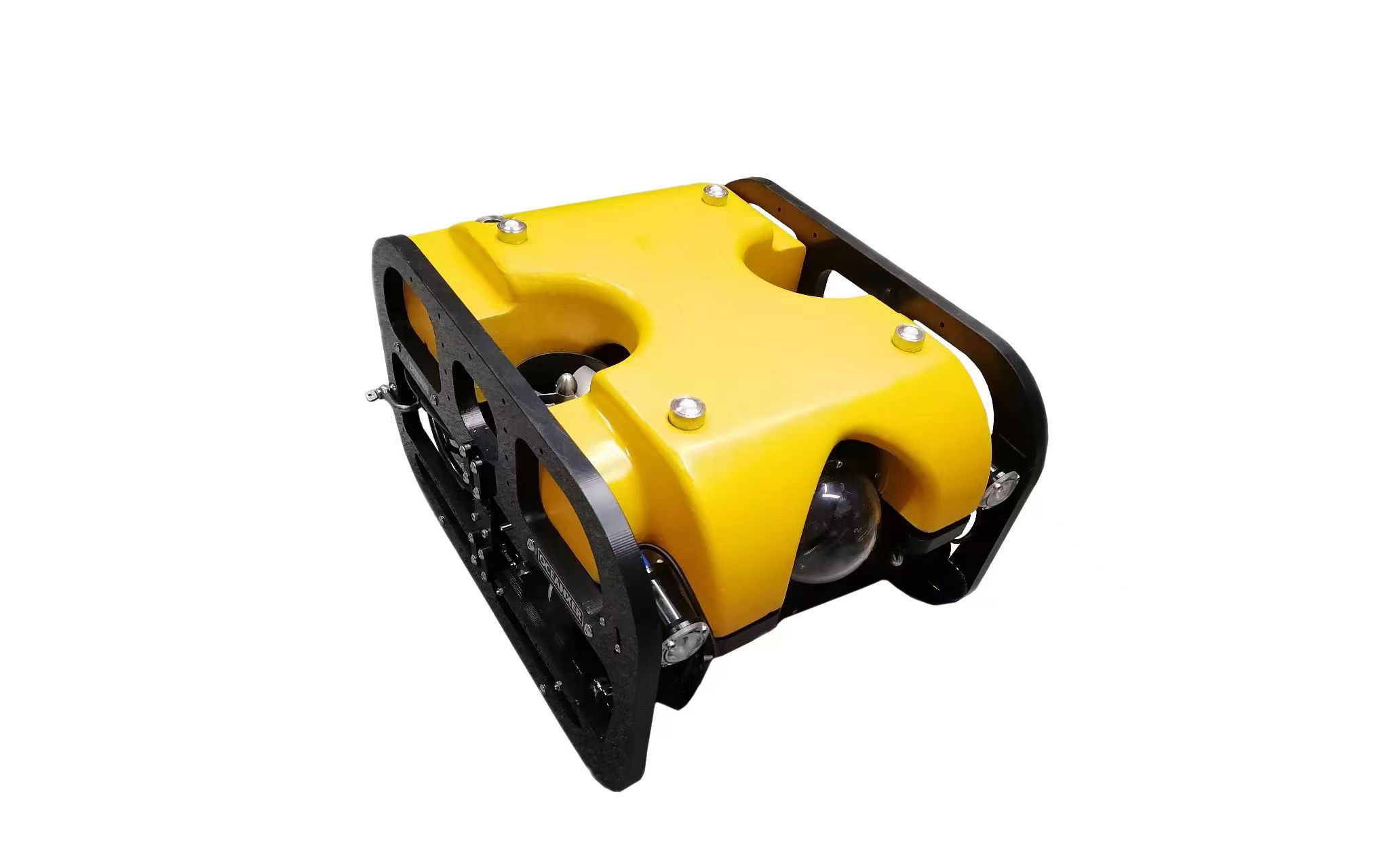

KX-UR-800 Underwater Robot
The KX-UR-800 underwater robot is a small and flexible underwater inspection robot, which can be used for ocean observation, offshore oil and gas pipeline inspection, hull plate inspection by carrying different sensors. The extended version of the underwater vehicle can operate at a maximum depth of 1,000 meters. The standard version includes a robot body, an umbilical winch and a deck control unit.
Characteristics
● Optional 1000m Launching with Recovery System
● Maximum effective payload up to 8 kg
● 1000m Depth Extension is Optional
● Optional Shore-based Power Supply System
● Optional Dual Camera
KX-UR-800 Underwater Robot
ROV Ontology includes
——Six high-thrust DC thrusters
——One 1080P PTZ camera
——Two 1500 lumens adjustable brightness LED lights
——A suit of battery powered system (replaceable)
Mechanism Parameters
Size ……………………………….437×356×273 mm
Weight in air…………………………………………20kg
Load capacity……….……………………….……8kg
Working depth………………….…300meters
Thruster thrust (single)……..…6.8kgf@max
Electric Parameters
Working voltage………………..24V
Ground Station
Mechanism Parameters
Size ……………………………….120 x200 x300 mm
Electric Parameters
Working voltage…………………… 12V
Operating system ……………… Win10
Storage capacity …………. 516G(SSD)
Umbilical Cable
Mechanism Parameters
Length………………………………….100m
Breaking strength…………………. 200kgf
Buoyancy in seawater…………….slightly neutral
Optional Accessories
——Multi-beam imaging sonar
——Multi-degree of freedom robotic arm
——Battery powered system
