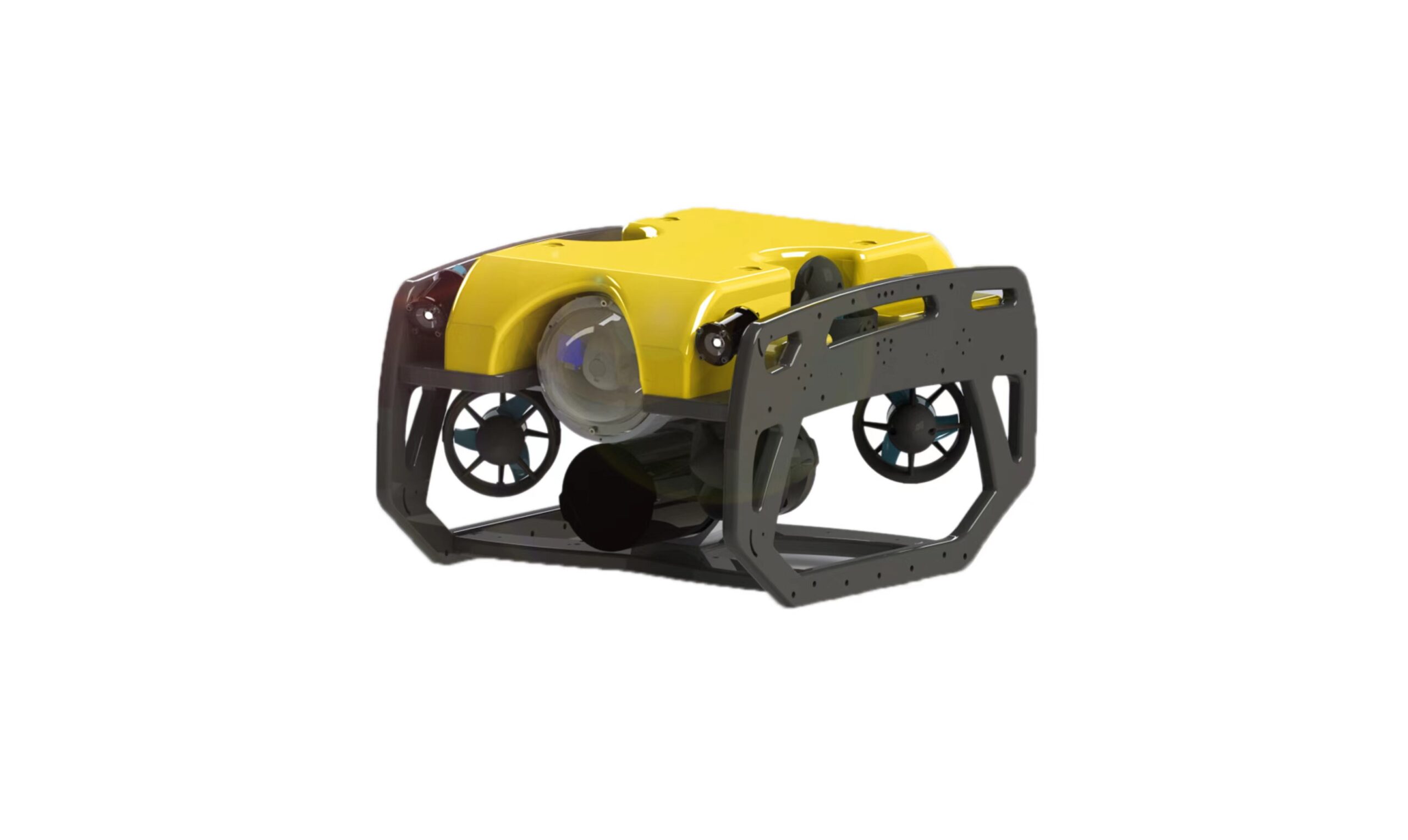

KX-UR-500 Underwater Robot
The KX-UR-500 underwater robot is rated to work at a depth of 300 meters. Equipped with two 1500 lumens ultra-bright LED lights. Use brushless DC submersible seagrass thrusters. Six thruster vector configurations for extremely high motion control. The buoyancy is adjustable, with a variety of expansion interfaces, allowing for a wide range of equipment such as sonar, robotic arms, sampling tools and other custom tooling. Suitable for most underwater operations. The system is equipped with a 1080p, 0.001lux low illumination high-resolution digital camera with a tilt head function. The equipment integrates a one-button start rotation and direct current switch, which is more convenient to use. The standard configuration is one ROV main engine, 100 meters umbilical cable and winch, 10.1 inch shore-based control box. Packed in aircraft-grade shipping cases.
Characteristics
● Flagship best-selling model
● Multiple extended functions
● Multifunctional ground station
● Optional Shore-based Power
KX-UR-500 Underwater Robot
ROV Ontology includes
——Six high-thrust DC thrusters
——One 1080P PTZ camera
——Two 1500 lumens adjustable brightness LED lights
——16.8V lithium battery pack with switch
Mechanism Parameters
Size…………… 460×350×260mm
Weight in air………………………13kg
Load capacity……………………………2kg
Working depth…………………………300 meters
Thruster thrust (single)…………….…6.5kgf@max
Maximum forward speed……………3 sections
Electric Parameters
Working voltage…………………………16.8V
Camera ISO…………………………..…0.01lux
Camera resolution………………………1080P
Built-in sensor
——Gyroscope
——Depth transducer
——Accelerometer
——Voltage transducer
—— Compass
——Electric current transducer
Zero Buoyancy Cable
Mechanism Parameters
Length ………………………………. 100m
Tensile strength ………………… 150kg
Buoyancy in seawater………….slightly neutral
Electric Parameters
Communication line………2 pairs of twisted pair
Ground Station
Mechanism Parameters
Size ……………. 550x430x230mm
High brightness screen……….19 inches
Electric Parameters
Working voltage ………………….. 12V
Operating system ……………. Win10
Storage capacity ……….. 516G(SSD)
Optional Accessories
——Multi-beam imaging sonar
——Multi-degree of freedom robotic arm
——Underwater GPS
——Shore-based power supply
