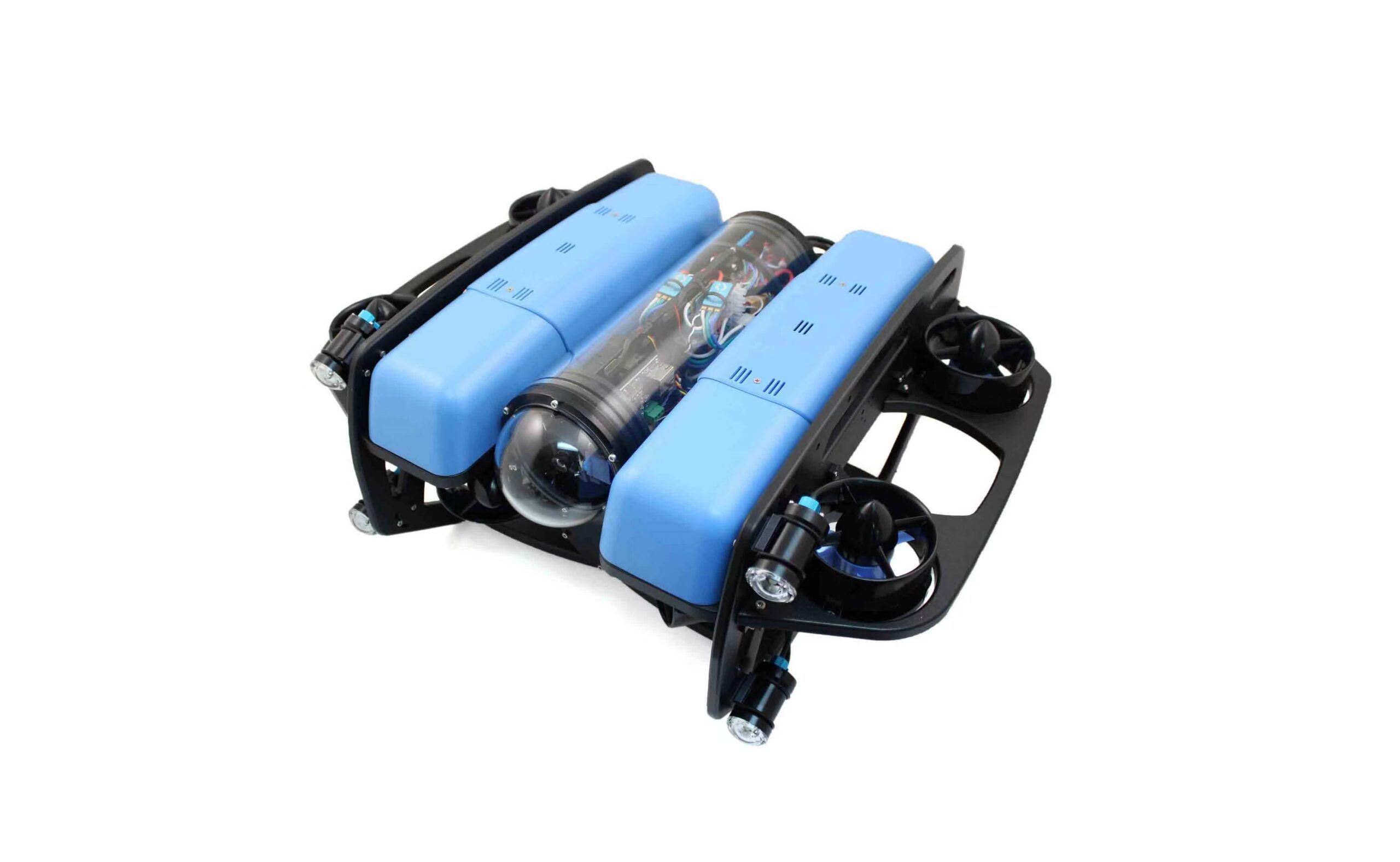

KX-UR-400 Underwater Robot
The KX-UR-400 is an affordable, high-performance underwater vehicle. The thruster adopts a vector layout for six degrees of freedom control and greater load capacity. The control unit and software source code are all open source, which has sufficient scalability and convenience of secondary development. With excellent performance, it is ideal for practical applications such as underwater inspection, scientific research and underwater exploration.
Characteristics
● Highly Cost-effective
● 3 hours Long Standby
● High Scalability
● Open Source, Secondary Development
● Portable
KX-UR-400 Underwater Robot
ROV Ontology includes
——Eight 350W thrusters
—— One 1080P PTZ camera
—— Two sets of 1500 lumen high-lighted LED lights (adjustable optical)
—— Equipped with gyroscope, accelerometer, magnetometer, internal barometer, depth sensor, voltage and galvanometer
Mechanism Parameters
Size……………….457x564x254mm
Weight in air…………………..12~13kg
Load capacity………………………1.5kg
Working depth……………………. 100m
Maximum forward speed…..1.5m/s
Forward thrust………………….. 14kgf
Normal thrust……………………. 18kgf
Lateral thrust………………………… 14kgf
Electric Parameters
Working voltage……………………16.8V
Camera ISO……………………….. 0.01lux
Zero Buoyancy Cable
Mechanism Parameters
Standard length …………………… 100m
Tensile strength ………………… 150kg
Buoyancy in seawater…………..slightly neutral
Strength support………………….. Kevlar
Electric Parameters
Communication line…………4 core (2 pairs of twisted pair)
Optional Accessories
——Multi-beam imaging sonar
——Multi-degree of freedom robotic arm
——10.5/19 inch ground station
