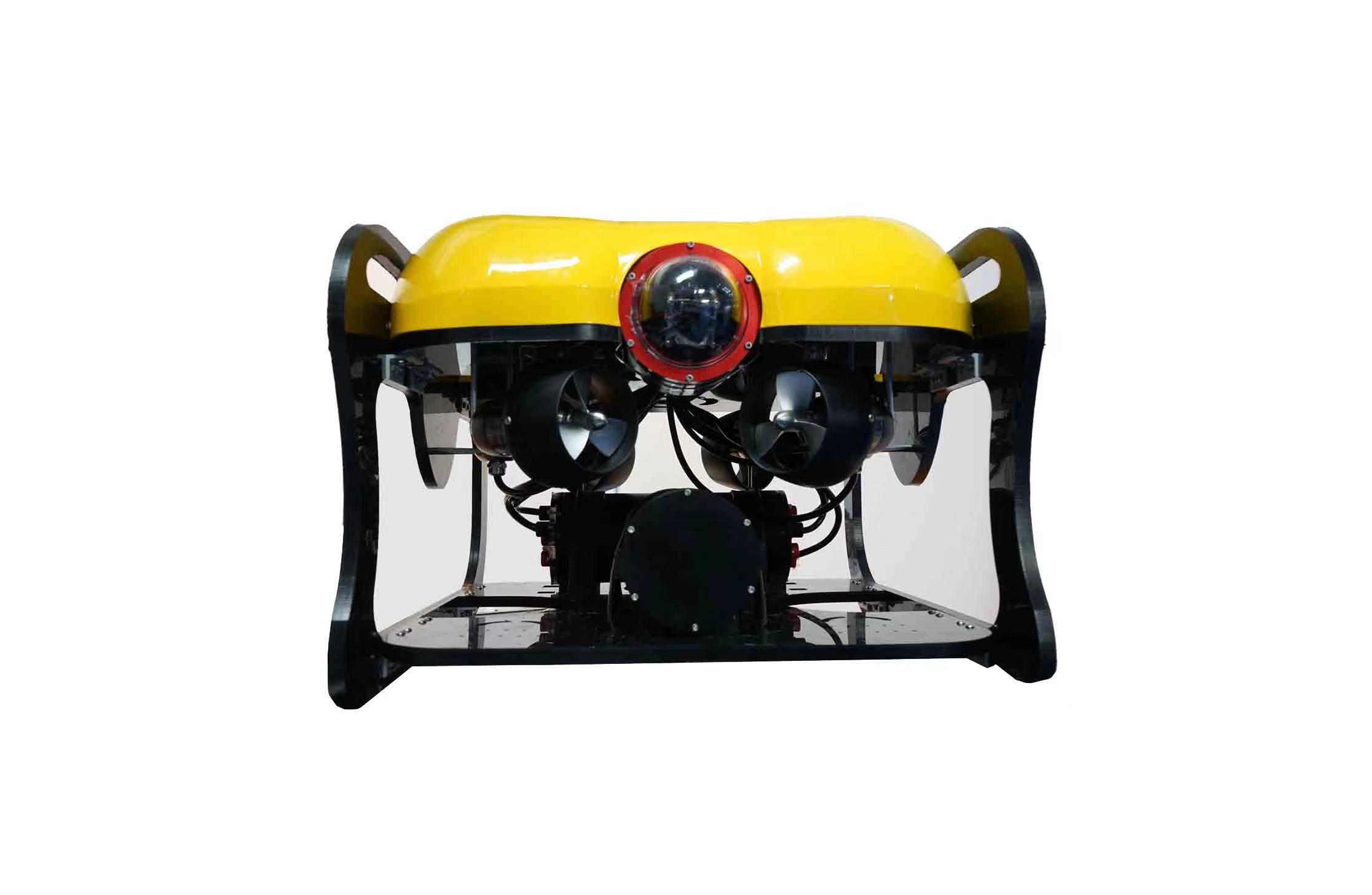

KX-UR-1000 Underwater Robot
The KX-UR-1000 is a high-performance, lightweight underwater vehicle. With sufficient scalability and load capacity, it can be equipped with multi-functional manipulators, acoustic equipment, CTD and other units to complete the task. Its excellent performance and reliable quality are the only choice for underwater inspection and underwater operations, scientific research and other practical applications.
Characteristics
● Light Operating
● High Scalability
● High Load Capacity
● Optional Shore-based Power Supply
KX-UR-1000 Underwater Robot
ROV Ontology includes
——Six high-thrust DC thrusters
——One 4K PTZ camera
——3000 lumens high light LED lights(adjustable brightness)
——Equipped with gyroscope, accelerometer, magnetometer, internal barometer, depth sensor, voltage and galvanometer
Mechanism Parameters
Size ……….549.85×498.64×399.5mm
Weight in air……………………40kg
Load capacity……………………… 16kg
Maximum working depth …… 300m
Maximum forward speed….. 1.5m/s
Forward thrust……………………. 27kgf
Vertical thrust ……………………. 18kgf
Lateral thrust …………………….. 27kgf
Electric Parameters
Working voltage……………………..24V
Camera ISO…………………….0.01lux
Zero Buoyancy Cable
Mechanism Parameters
Standard length………………. 300m
Strength of extension………..200kg
Buoyancy in seawater……..slightly neutral
Strength support……………….. Kevlar
Electric Parameters
Communication line……..8 core(4 pairs of twisted pair)
Optional Accessories
——Multi-beam imaging sonar
——Multi-degree of freedom robotic arm
——10.5/19 inches ground station
