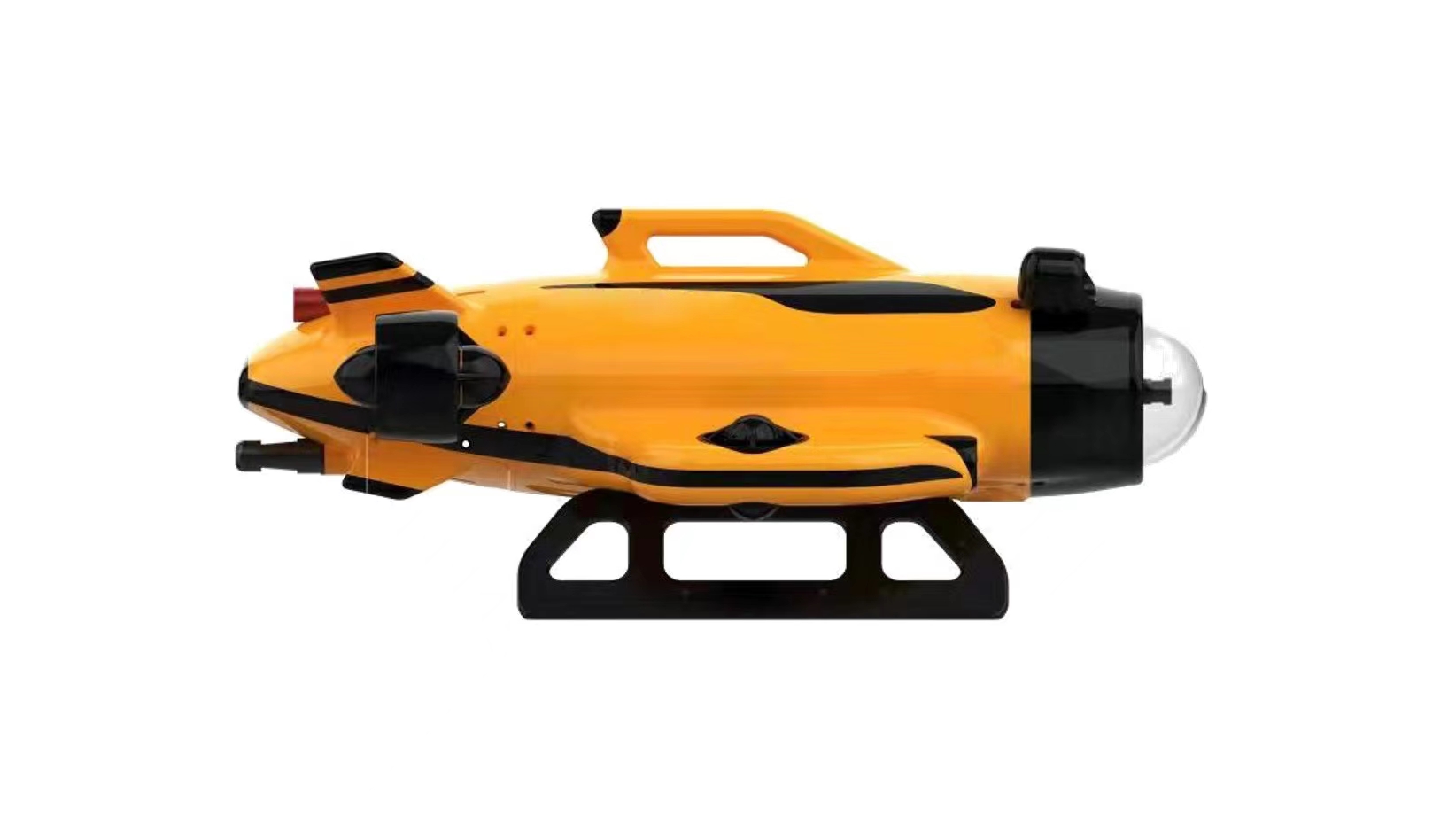

KX-UR-100 Underwater Robot
KX-UR-100 Underwater Robot is designed to resemble a double-hull submarine, consisting of an inner pressure-resistant watertight cabin and an outer non-pressure-resistant structural shell. The design of the streamlined body greatly reduces the traveling resistance of the underwater machine, and the underwater robot has good extensibility, which allows students to connect the functional modules designed by themselves into it, so that students can make targeted modifications for each underwater robot competition. Besides, the open source submarine has the advantages of flexible operation, convenient control and easy carrying. The application can not only be limited to competition, but also allow students to drive KX-UR-100 ROV to explore the surrounding waters in addition to scientific innovation, so as to realize the combination of scientific research and entertainment.
Characteristics
●Flexible Four-push Layout
● 4 hours Long Standby
● Single Function Robot Arm (optional)
● Lightweight and Portable
KX-UR-100 Underwater Robot
ROV Ontology includes
—— Four 200W brushless DC thrusters
—— One 1080P PTZ camera
—— Four sets of 250 lumen high-lighted LED lights
Mechanism Parameters
Size……………………..490×290×210mm
Weight in air………….…….……… 4kg
Load capacity…………….…………1kg
Working depth………………………50meters
Thruster thrust (single)………. 2kgf@max
Electric Parameters
Working voltage ………………… 12V
Camera ISO ………………….. 0.01lux
Zero Buoyancy Cable
Mechanism Parameters
Length …………………………….. 50m
Tensile strength ………………… 104kg
Buoyancy in seawater…….slightly neutral
Electric Parameters
Communication line…………four twisted pairs
Optional Accessories

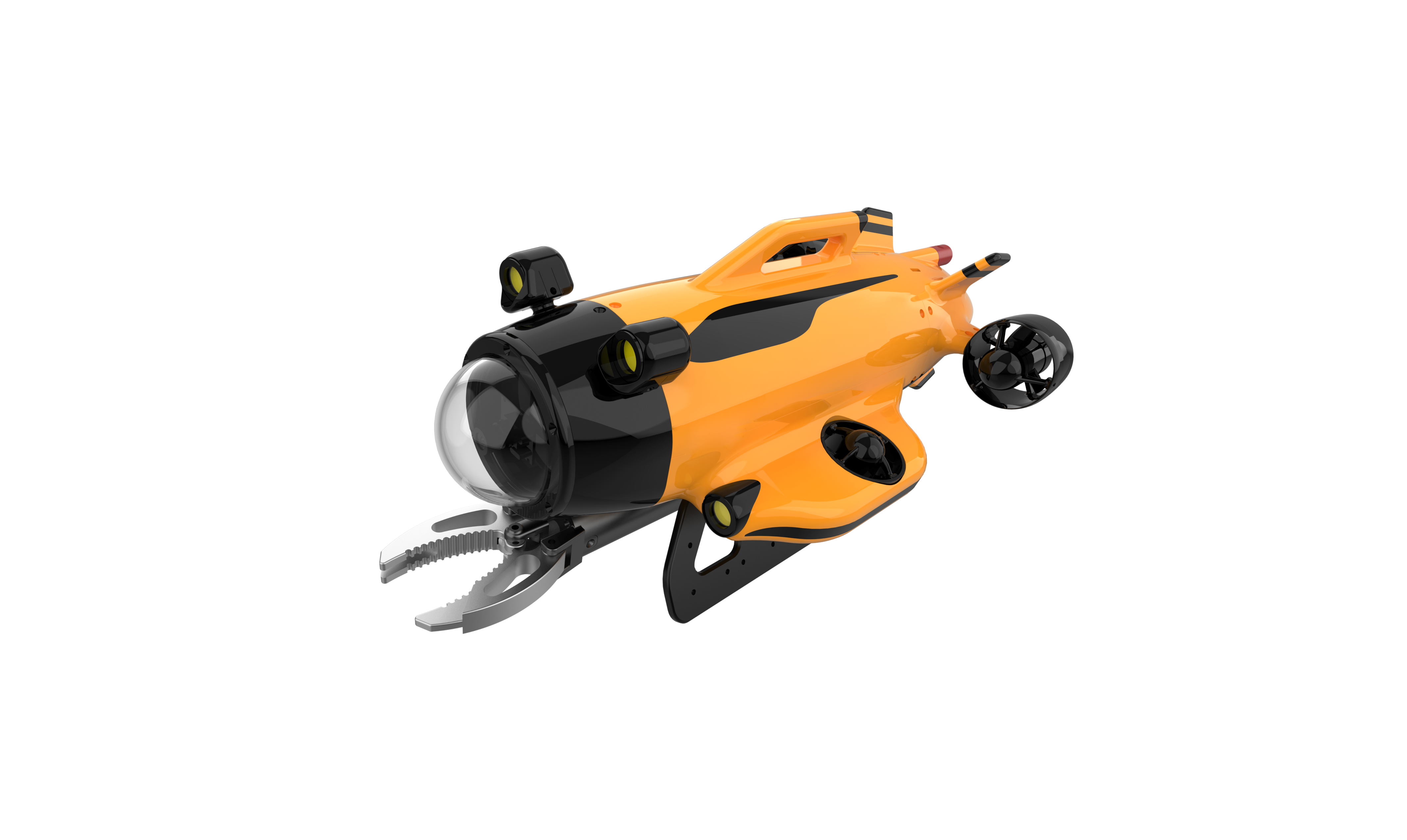

——Single-function underwater robotic arm
——Upgrade ARV
